Automotive Lighting Prototype | KUSLA — Suzhou, China

Automotive Lighting Prototype Supplier — Suzhou, China

KUSLA is a specialist automotive lighting prototype manufacturer based in Suzhou, China. We produce high-precision optic prototypes and fully assembled lit mockups — including headlamps, taillights, DRLs, and interior ambient lighting — that closely replicate injection-molded production parts. With custom optical-grade PMMA and polycarbonate material blocks, CNC-machined light guides as long as 1,400 mm, and surface finishes down to mirror polish, our prototypes let lighting engineers validate optical performance, styling, and fitment before committing to tooling.

Request a Quote →

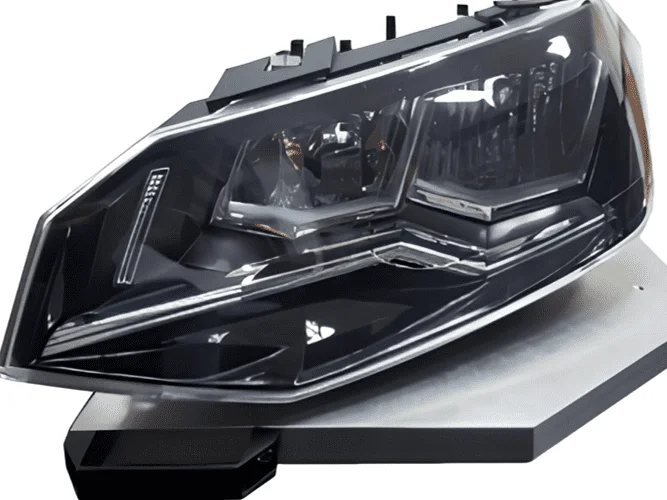

Complete automotive headlamp lit mockup prototype by KUSLA

Why Automotive Lighting Prototypes Matter

Automotive lighting is one of the most visually defining elements of vehicle styling and a complex engineering system that combines mechanical structure, optical design, and electronics. High-fidelity prototypes let OEMs and Tier-1 suppliers validate lamp appearance, beam pattern, and assembly fitment early in the development cycle — well before committing to production tooling that can cost hundreds of thousands of dollars.

Because lighting prototypes must replicate the transparency, surface finish, and dimensional accuracy of injection-molded parts, the manufacturing process demands tight tolerances (as fine as ±0.05 mm) and careful handling of optical-grade materials. A poorly made prototype can mislead optical simulation validation and delay the entire vehicle program, making the choice of prototype supplier a critical decision for lighting engineering teams.

Automotive Lighting Components We Prototype

From individual optic elements to fully assembled lamp mockups, KUSLA prototypes every component in the automotive lighting stack.

Headlamp Assemblies

Complete lit mockups with functional LED sources for styling review and optical validation.

Taillight Assemblies

Rear lamp prototypes with light blades, reflectors, and turn signal integration.

DRL Modules

Daytime running light prototypes with light-guide signatures and uniform illumination.

Outer Lenses

PMMA/ABS bi-color or clear lenses, CNC machined to ±0.1 mm with mirror polish.

Light Guides & Blades

PMMA/PC, up to 1,400 mm single-piece, ±0.05 mm with optic pillow details.

Reflectors

PC or aluminum, CNC machined to ±0.05 mm with vacuum metalization for specular reflection.

Bezels & Trim

Decorative PC bezels with gloss UV coating, 3K carbon-fiber texture, or chrome effect.

Housings & Brackets

ABS structural parts, CNC or SLA, painted black, 5-day lead time.

KUSLA Automotive Lighting Prototype Gallery

KUSLA has manufactured hundreds of automotive lighting prototypes for global Tier-1 suppliers. Below are selected projects whose products have already reached market, shown with customer NDA approval.

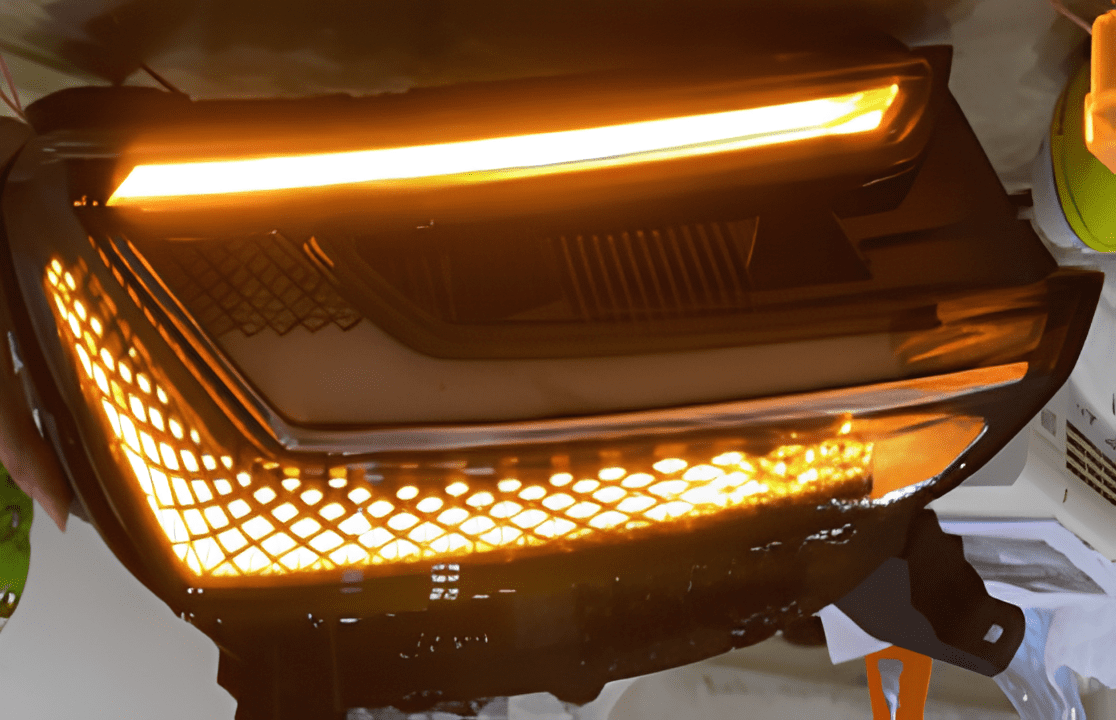

CNC-machined headlight prototype — outer lens and bezel assembly

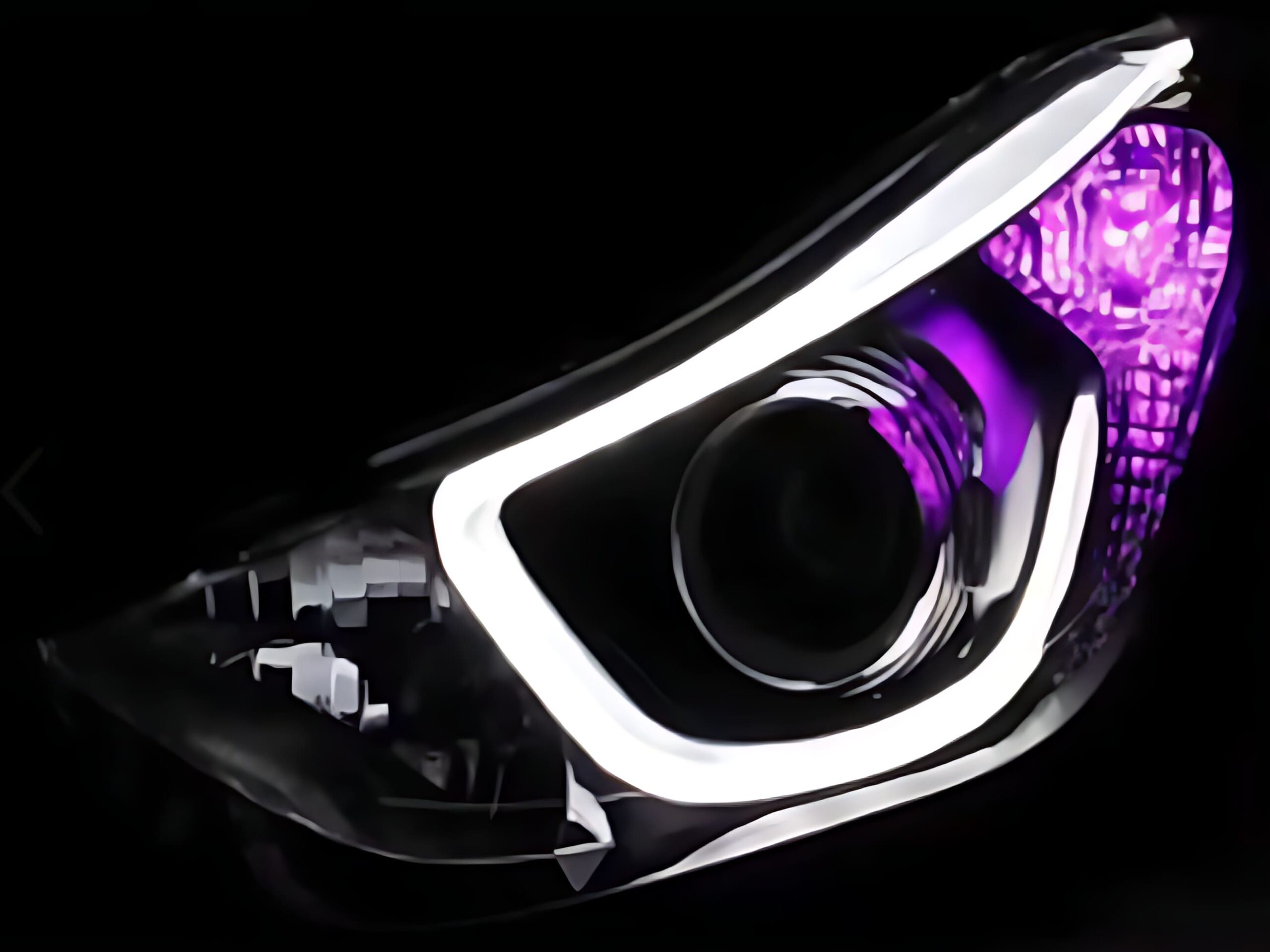

Headlight lit mockup prototype with functional LED light source

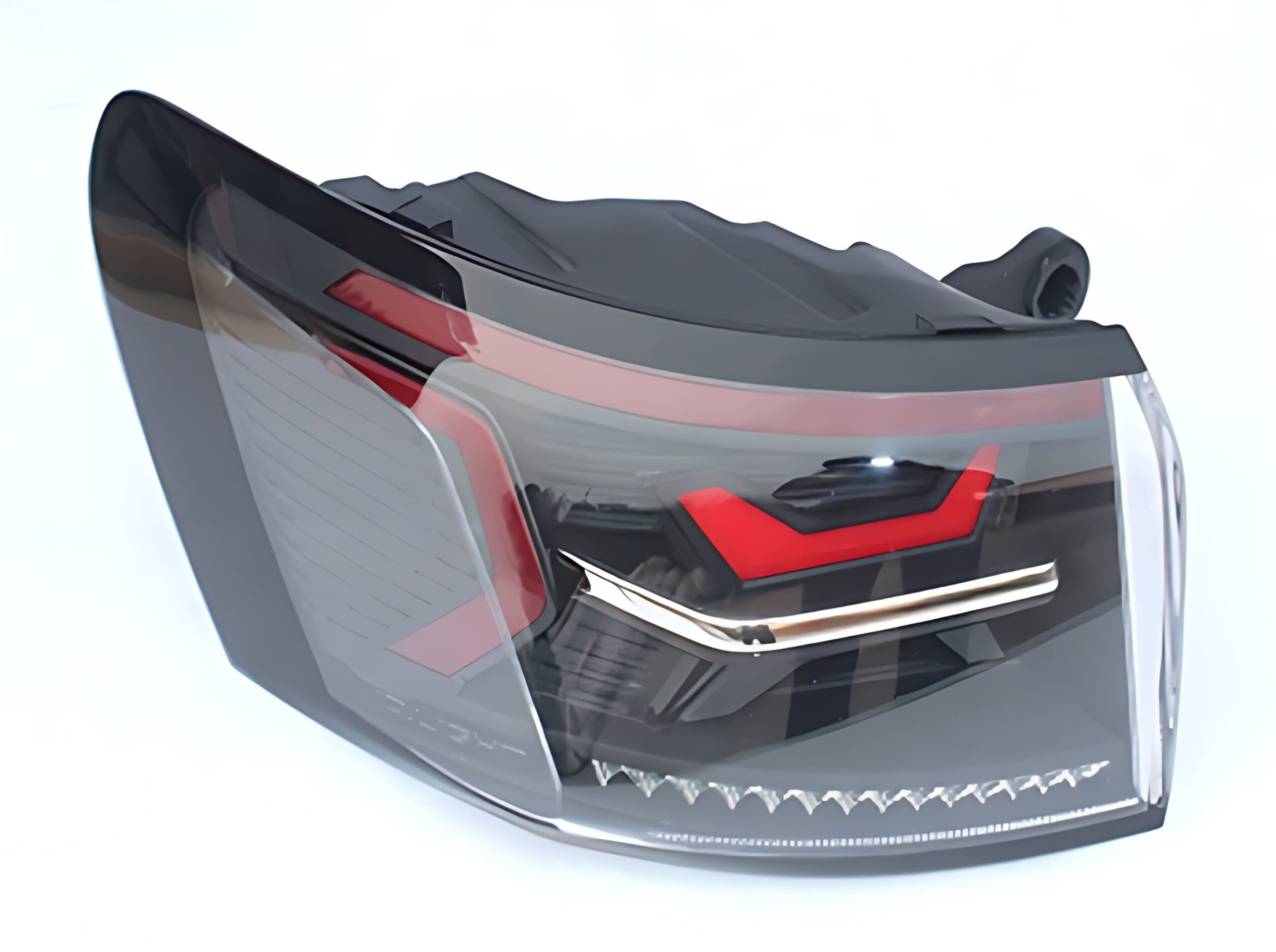

Taillight prototype — rear lamp housing and lens assembly

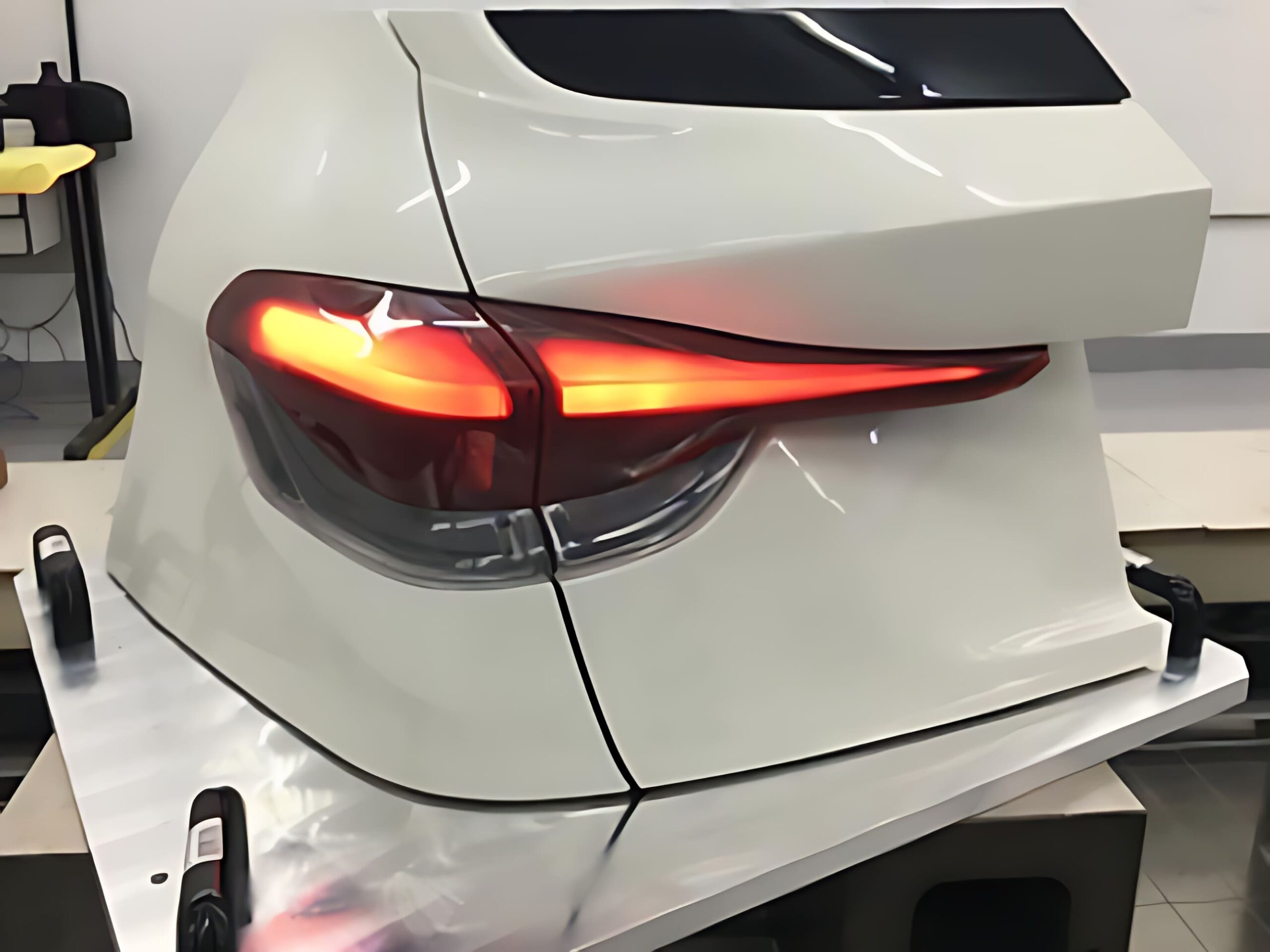

Taillight lit mockup showing DRL and turn signal illumination

3K carbon-fiber texture bezel prototype for automotive headlamp

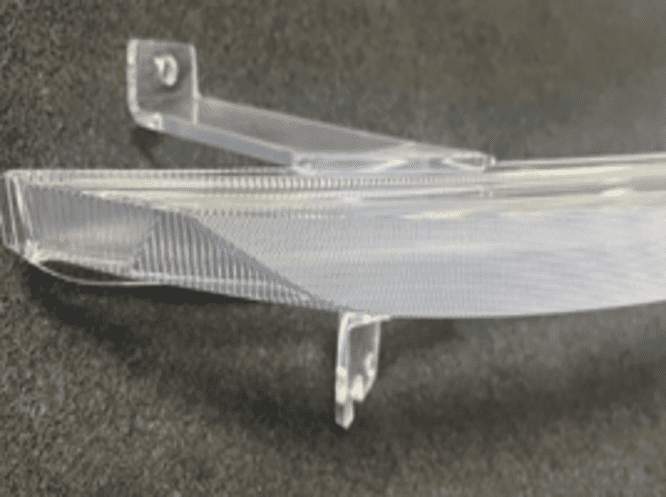

CNC-machined PMMA light blade prototype for automotive tail lamp

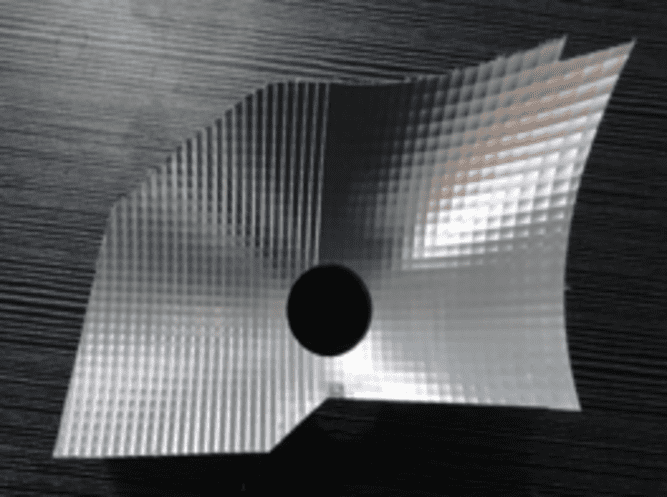

Aluminum CNC-machined reflector prototype with metalized surface

Optic collimator lens prototype machined from PMMA

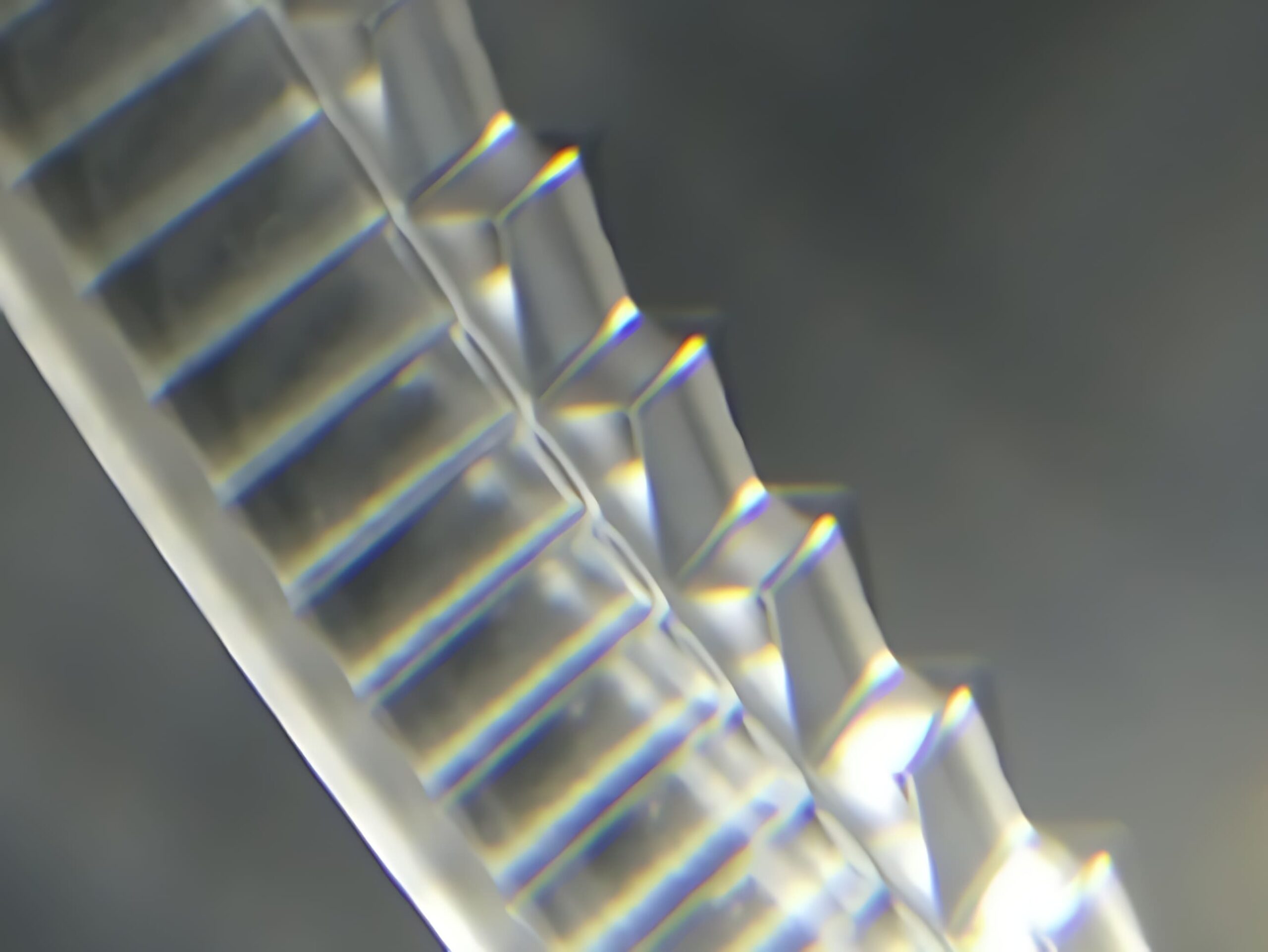

Light guide prototype showing CNC-machined optic pillow detail

How We Manufacture Automotive Lighting Prototypes

Custom Material Block Casting

For transparent optic components, we cast optical-grade PMMA or polycarbonate resin into solid blocks that match the exact production grade — including Makrolon LED 2245, PMMA 8N, and light-diffusing LD series. This ensures prototype optical properties closely replicate mass-production parts.

Multi-Axis CNC Precision Machining

Blocks are machined on 5-axis CNC centers with diamond or carbide tooling. For light guides and reflectors, we achieve surface roughness suitable for direct mirror polishing without secondary molding. Minimum machinable optic feature: 0.3 mm × 0.3 mm with R0.05 mm tooling.

Surface Finishing & Assembly

Finishing processes include mirror polishing for lenses and light guides, vacuum metalization for reflectors, custom color-matched painting, and UV gloss coating for bezels. For bi-color outer lenses, each color zone is machined separately and UV-bonded into a single assembly — replicating two-shot injection without tooling.

Lit Mockup Integration

Complete lamp assemblies integrate LED light sources, wiring harnesses, and all optical and structural components into a functional lit mockup for styling clinics, customer presentations, and photometry testing via our partner laboratory.

CNC-machined optic pillow detail on PMMA light guide prototype

Automotive Lighting Prototype Specifications

Component	Function	Material	Process	Precision (mm)	Surface Finishing	Lead Time
Outer Lens	Seals lamp with housing	PMMA + ABS	CNC Machining	±0.1	Mirror polish (PMMA), paint black (ABS), UV bonded	7 days
Bezel	Decorative trim, hides internals	PC	CNC / 3D Printing	±0.1	Painting black + gloss UV	6 days
Reflector	Reflects light from source	PC / Aluminum	CNC Machining	±0.05	Vacuum metalization	8 days
Light Guide	Guides light distribution	PMMA / PC	CNC Machining	±0.05	Mirror polishing	7 days
Housing	Seals lamp with outer lens	ABS	CNC / 3D Printing	±0.2	Painting black	5 days
Car Body Section	Simulates vehicle styling for fitment	ABS	CNC / 3D Printing	±0.2	Custom color paint + gloss UV	7 days

Why Choose KUSLA for Automotive Lighting Prototypes

Engineering Support

Our engineers review prototype designs for manufacturability and assembly, ensuring parts are easy to integrate and disassemble for iterative development cycles.

Fast Lead Times

Complete automotive lighting prototypes delivered in as few as 7–10 days, helping your team meet tight vehicle program milestones.

Decade of Experience

Over 10 years and 100+ automotive lighting projects for global Tier-1 suppliers including Valeo, HELLA, Marelli, HASCO, and XingYu.

Custom Optic Materials

We cast optical-grade PMMA and PC blocks matching your exact production resin grade — achieving the best possible prototype optical performance.

Cost Effective

Continuous cost-reduction initiatives and managed supplier partnerships let us deliver competitive pricing without compromising quality.

Automotive Prototyping Capabilities

With over 200 in-house machines, KUSLA delivers high-quality automotive prototypes by CNC machining and 3D printing. For volumes over 10 pieces, we offer urethane casting and rapid injection molding for faster production. For ultra-precision optic surfaces, our single-point diamond turning capability achieves sub-micron surface finishes.

CNC turning machine producing automotive prototype part

CNC Prototyping

Complete your prototype in as fast as 72 hours with superior precision and cost-effective pricing.

Urethane Casting

Production-grade finish for up to 100 pieces in 5 days using superior polyurethane materials.

3D Printing

As fast as 24 hours with FDM, SLS, SLA, PolyJet, and MJF technologies.

Injection Molding

Insert and overmolding with production materials in under 4 weeks.

Our Customers

KUSLA serves over 100 customers including global Tier-1 automotive lighting companies such as Valeo, HELLA, and Marelli, as well as leading domestic manufacturers including HASCO and XingYu.

"In the past project we finished with KUSLA, every component was perfect. During the review meeting with our customer, nobody could find a single issue with the prototypes — this was the first time we received such positive feedback. We are preparing the next round with KUSLA."

PeterProject Manager

"KUSLA's prototypes have outstanding quality — better than our other suppliers. They are the top automotive lighting prototype supplier we have ever worked with. We will consider KUSLA as our first priority for all prototype projects."

JohnProject Manager

"KUSLA's engineering support is exceptional. They attended every meeting we held at night due to the time zone difference. The result was high-quality prototype details — everything was right despite numerous design changes."

RonaldoLead Engineer

Frequently Asked Questions

We can machine a minimum R0.05 mm radius on optic prototypes such as light guides and reflectors using precision ball-end mills.

Yes. We produce light guides from optical-grade polycarbonate using our custom material block casting process, matching production-grade resin properties.

We can CNC machine light guides up to 1,400 mm long from a single piece of material.

Unlike suppliers who use paint to simulate bi-color lenses, KUSLA machines each color zone from separate material blocks, then bonds them into a single assembly. This closely replicates the look and optical behavior of injection-molded two-shot lenses.

We cast both polycarbonate and acrylic blocks. PC grades include LUX12114, PC2405, PC2245, PC2407, and Makrolon LED 2245 551592/000000. PMMA grades include 8N, 8N 33681, 8N 33691, 8N DF23 milky red, Satinice DF23 Red 3V161, and light-diffusing grades LD96, LD48, LD24, and LD12.

We can machine optical features as small as 0.3 mm × 0.3 mm using an R0.05 mm ball-end milling tool.

We use a controlled spray-texture paint process with calibrated paint volume and uniform gun speed. The result matches the grain sample visually, with optical performance approximately 80% similar to a production tooling part based on our experience.

Yes. We partner with an accredited laboratory that can conduct optical photometry testing on automotive lighting prototypes.

We offer two methods: spray painting with transparent dye coatings, or casting custom-colored material blocks (PMMA or PC) for CNC machining. The block method delivers more uniform color and better optical clarity.
