Automotive Prototyping Service
From concept validation to pre-production runs, KUSLA delivers end-to-end automotive prototyping for OEMs and Tier 1–2 suppliers. CNC machining, 3D printing, injection molding, and sheet metal — ISO 9001 certified, with parts shipping in as fast as 72 hours.
Request a Quote →
What Is Automotive Prototyping?
Automotive prototyping is the process of creating physical models of vehicle components — from dashboard assemblies and headlamp housings to structural brackets and EV battery enclosures — before committing to mass-production tooling. These prototypes serve as functional stand-ins that let engineering teams validate fit, form, material performance, and manufacturing feasibility at every stage of the vehicle development cycle.
Unlike consumer-product prototyping, automotive work demands tighter tolerances, stricter material traceability, and compliance with standards such as ISO 2768, IATF 16949, and FMVSS. The cost of catching a design flaw at the prototyping stage is a fraction of what it costs after production tooling has been cut — making rapid, high-fidelity prototyping one of the highest-ROI investments in a new vehicle program.
Why Rapid Prototyping Matters in the Automotive Industry
Vehicle development cycles have compressed dramatically. Programs that once ran 48–60 months are now expected to hit the market in 24–36, driven by EV platform launches and increasing model proliferation. Rapid prototyping absorbs that pressure by letting teams iterate faster without sacrificing validation rigor.
With the right prototyping partner, engineering teams can test three design iterations in the time it would take to tool one — reducing the risk of costly late-stage changes while shortening time-to-market. Functional prototypes also give stakeholders a tangible reference for design reviews, supplier negotiations, and pre-certification testing, replacing slide-deck assumptions with real data.
Key benefits for automotive OEMs and suppliers:
- Compress design-validation cycles by 40–60%
- Catch tooling and assembly issues before committing to steel molds
- Test production-equivalent materials without full-scale tooling investment
- Support PPAP documentation with first-article inspection data
- Bridge the gap between engineering approval and SOP with low-volume runs
Prototyping Stages in Vehicle Development
Automotive prototypes are not a single deliverable — they evolve across four distinct phases, each with its own fidelity, material, and tolerance requirements.
1. Concept & CAD Model Validation

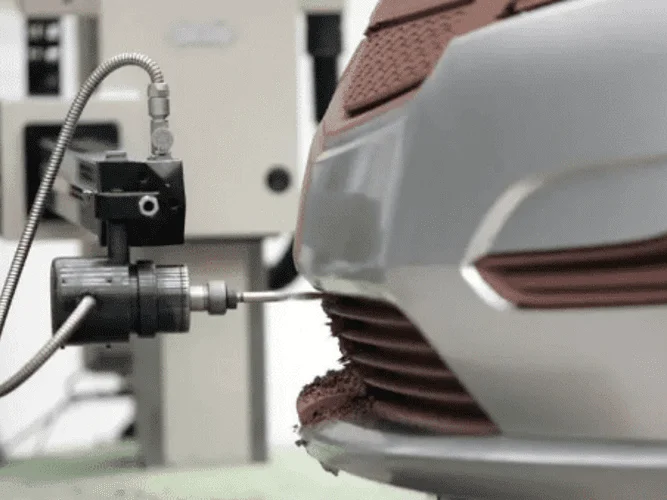

Before any material is cut, CAD models go through design-for-manufacturability (DFM) review. Engineers use 3D-printed or CNC-machined concept models to verify proportions, ergonomic interfaces, and aesthetic intent. At this stage, visual fidelity matters more than mechanical performance — parts are typically printed in ABS or SLA resin, with turnaround in 24–72 hours.
2. Structural & Fit Verification
Functional prototypes are machined or molded from production-equivalent materials — 6061-T6 aluminum for a suspension bracket, glass-filled PA66 for a connector housing. Engineers validate fit with mating components, check interference in the assembly, and measure dimensional conformance against GD&T callouts. Tolerances tighten to ±0.005 in for metals and ±0.010 in for plastics.

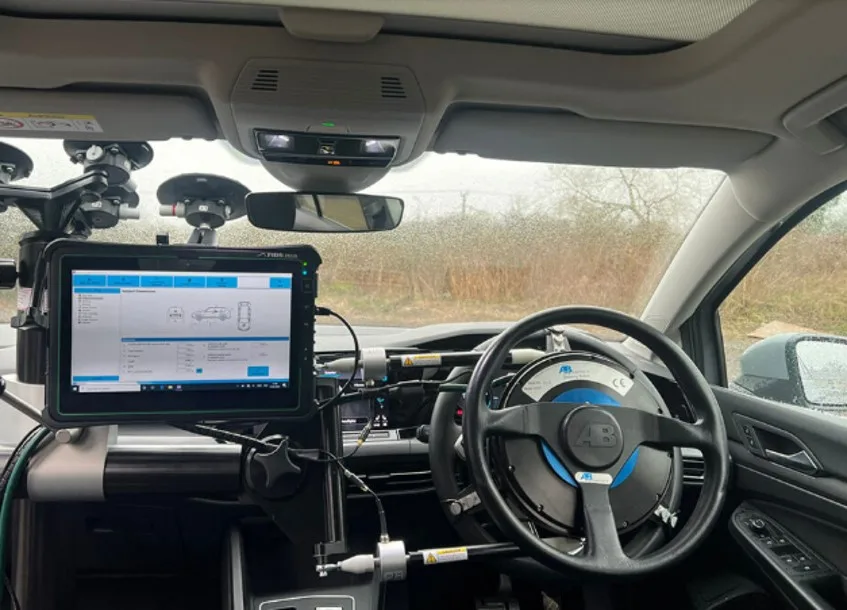

3. Functional & Performance Testing
Parts move to the test bench: thermal cycling, vibration fatigue, UV exposure, crash simulation, and electrical integration. This stage often requires the exact production material — PC/ABS for a dashboard bezel, 316L stainless for an exhaust component — so that test data is transferable to the production validation report. KUSLA supports destructive and non-destructive testing with full material certification and first-article inspection (FAI) documentation.

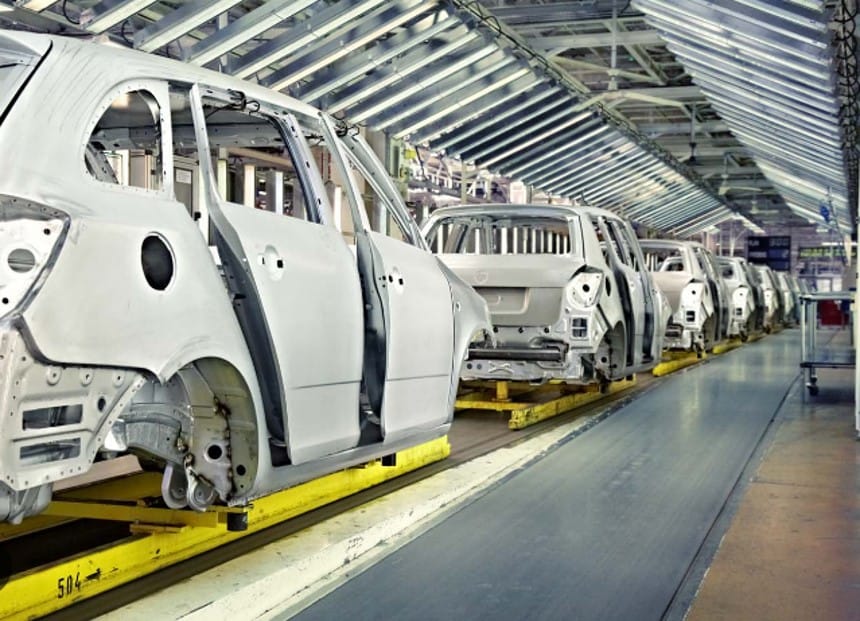

4. Production Process Validation (PPV)
The final prototype run uses production-intent tooling and processes to confirm that the manufacturing line can deliver parts at volume with acceptable Cpk values. KUSLA's rapid injection molding with aluminum tooling handles runs of 50–500+ parts in production resins, giving OEMs the bridge manufacturing data they need for PPAP submission — without the six-figure investment in hardened steel molds.
Automotive Prototyping Manufacturing Processes
KUSLA operates 200+ machines across six core manufacturing technologies. Each is matched to specific automotive prototyping requirements by material, tolerance, volume, and lead time.
CNC Machining
3-axis, 4-axis, and 5-axis milling plus turning. Metals and engineering plastics. Tolerances to ±0.0004 in. Prototypes in 3–5 days.
3D Printing
FDM, SLA, SLS, MJF, and metal DMLS. Concept models in 24 hrs. Ideal for complex geometries and early-stage design validation.
Rapid Injection Molding
Aluminum tooling for 50–10,000 parts in production resins. Insert and overmolding supported. Tooling in under 4 weeks.

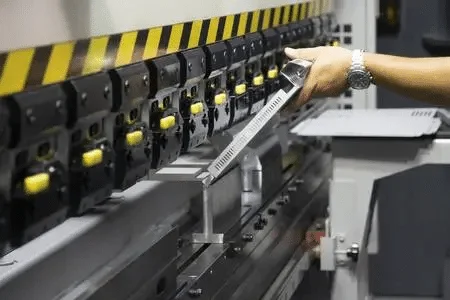

Sheet Metal Fabrication
Laser cutting, bending, welding, stamping. No MOQ. Brackets, enclosures, battery trays, and structural panels.
Urethane Casting
Up to 100 production-grade parts in 5–7 days from silicone molds. Simulates injection-molded plastic properties.
Low-Volume Manufacturing
1–10,000 units with mass-production quality. Bridge production between prototype approval and SOP.
Automotive Prototyping Capabilities at a Glance
| Process | Materials | Tolerance | Lead Time | Volume Range |
|---|---|---|---|---|
| CNC Machining | Al 6061/7075, steel, brass, titanium, ABS, PC, POM, PEEK | ±0.005 in (±0.0004 in for critical dims) | 3–5 days | 1–5,000 |
| 3D Printing | ABS, Nylon, resin (SLA), PA12 (SLS), metals (DMLS) | ±0.005–0.010 in | 1–3 days | 1–200 |
| Injection Molding | ABS, PC, PA6-GF30, PBT, PP, TPE, PC/ABS | ISO 20457 / ±0.003 in | 2–4 weeks | 50–10,000 |
| Sheet Metal | Aluminum, stainless steel, mild steel, copper | ISO 2768-f (fine) | 5–10 days | 1–5,000 |
| Urethane Casting | PU resins (ABS-like, PP-like, rubber-like) | ±0.010–0.020 in | 5–7 days | 1–100 |
Materials for Automotive Prototyping
Metals
Material selection is driven by the component's operating environment. Aluminum 6061-T6 remains the workhorse for structural and chassis prototypes — offering a strong balance of machinability, corrosion resistance, and weldability. 7075-T6 is specified where higher yield strength is required, such as suspension arms and load-bearing brackets. Stainless steel 304 and 316L serve exhaust, sensor, and under-hood applications. Titanium Grade 5 (Ti-6Al-4V) handles extreme-weight and high-temperature scenarios.
Plastics & Composites
Interior and exterior trim prototypes are typically machined or molded in ABS, PC, or PC/ABS blends. Under-hood applications require glass-fiber reinforced polyamides (PA6-GF30, PA66-GF30) or PBT for thermal and vibration resistance. Transparent components — headlamp lenses, light guides, instrument cluster covers — use PMMA (acrylic) or optical-grade polycarbonate, CNC-machined and polished to near-optical clarity. PEEK is available for high-performance seals and electrical insulation.
Automotive Prototype Applications
KUSLA supports concept, functional, and pre-production prototypes across every major vehicle subsystem. Whether you need a single show-car part or 500 bridge-production units, our process scales to match your development timeline.
- Headlamp & taillight housings
- Light guides & optical lenses
- Dashboard & center console assemblies
- Door panels, handles & latches

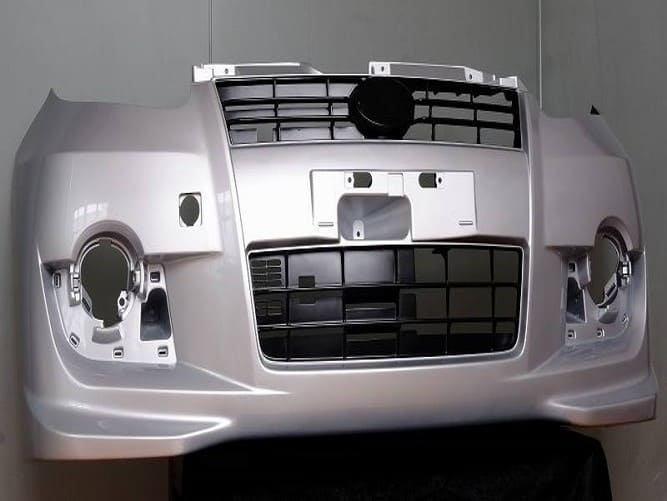

- Bumpers & fender prototypes

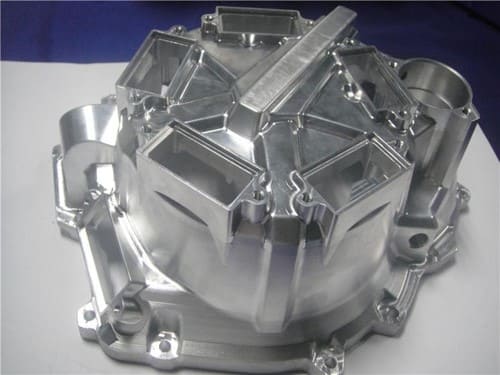

- EV battery enclosures & trays
- Structural brackets & mounts
- Exhaust components & heat shields
- Sensor housings & connector bezels
- Wheel & suspension prototypes
Why OEMs and Tier 1 Suppliers Choose KUSLA
KUSLA has supplied prototypes and production parts for programs involving Volkswagen, BMW, General Motors, and Stellantis — working both directly with OEMs and through their Tier 1 and Tier 2 supply chains.
Full-Service Capabilities
Unlike shops that specialize in a single process, KUSLA runs all six core technologies — CNC machining, 3D printing, injection molding, urethane casting, sheet metal, and diamond turning — under one roof. That means a single point of contact, consistent quality standards, and the ability to shift processes mid-program without re-qualifying a new vendor.
Every project is backed by in-house quality control with CMM inspection, material certifications, and FAI reports. We provide full dimensional inspection data and can support PPAP submissions when you need to present prototype validation results to your OEM customer.
Automotive Prototyping FAQ
The most common processes include CNC machining (milling, turning, 5-axis), 3D printing (SLA, SLS, FDM, MJF), rapid injection molding with aluminum tooling, vacuum/urethane casting, and sheet metal fabrication (cutting, bending, welding, stamping). Process selection depends on material requirements, tolerance class, volume, and development stage.
Standard CNC machining tolerances are ±0.005 in (±0.127 mm) for metals and ±0.010 in (±0.254 mm) for plastics. For critical interfaces such as bearing bores and mating surfaces, we can hold ±0.0004 in (±0.01 mm). Sheet metal tolerances follow ISO 2768-f (fine). Injection-molded parts meet ISO 20457 dimensional standards.
Metals include aluminum alloys (6061-T6, 7075-T6, 5083), stainless steel (304, 316L), mild steel, brass, copper, and titanium (Grade 2, Grade 5). Plastics include ABS, PC, PA6/PA66 (with and without glass fiber), POM, PMMA, PEEK, PBT, PP, and PE. We also support composite materials and production-grade injection resins.
3D-printed prototypes ship in as fast as 24 hours. CNC-machined parts are ready in 3–5 business days. Vacuum-cast parts (up to 100 units) take 5–7 days. Rapid injection-molded parts with aluminum tooling typically ship within 2–4 weeks. Lead times vary by geometry complexity, material, and batch size.
Yes. KUSLA has supplied prototypes and low-volume production parts for programs involving Volkswagen, BMW, General Motors, and Stellantis, working with both OEMs directly and through their Tier 1 and Tier 2 supply chains. We are ISO 9001:2015 certified.
Yes. We support the full cycle from single proof-of-concept prototypes through bridge production runs of 1–10,000 units using the same materials and processes as mass production. This includes rapid injection molding with production-grade resins, CNC-machined metal components, and sheet metal fabricated assemblies.
