Medical Device Prototyping Service
From concept validation to pilot production — KUSLA delivers ISO 13485-certified prototypes for FDA Class I and Class II medical device components. Accelerate your development timeline with CNC machining, 3D printing, injection molding, and urethane casting, all from a single supplier with full material traceability.
Request a Quote →

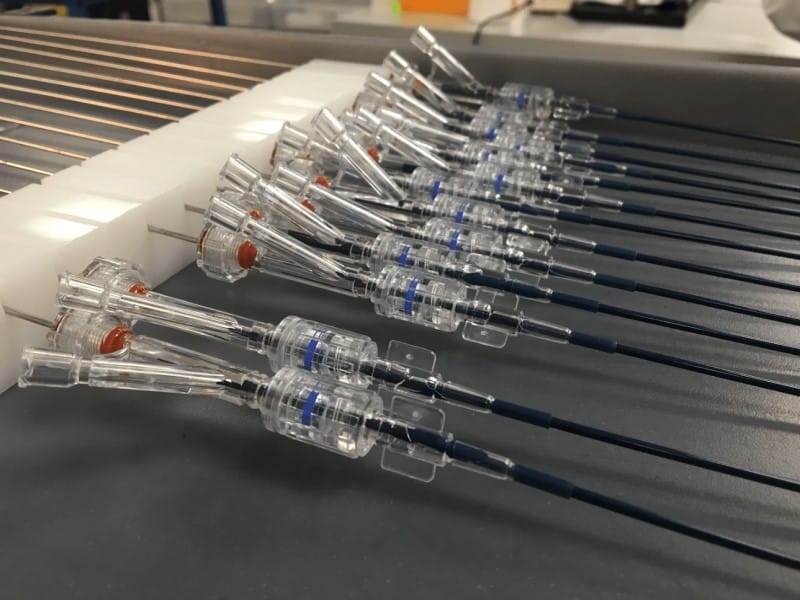

Medical Device Prototyping and Low-Volume Production
Bringing a medical device from concept to market requires prototypes at every stage — appearance models for stakeholder reviews, functional units for bench testing, and pre-production parts for design verification and regulatory submissions. KUSLA supports each of these stages with in-house manufacturing and a vetted supplier network, ensuring consistent quality and fast iteration cycles.
Unlike general-purpose prototype shops, KUSLA maintains ISO 13485-certified processes specifically for medical device work. This means full material traceability, documented inspection records, and cleanroom capability for injection-molded components — the infrastructure medical device companies need to move confidently from prototype to production.
Five Stages of Medical Device Prototyping
Medical device development follows a structured path from initial idea to market-ready product. KUSLA provides manufacturing support at each stage, matching the right process and material to the prototype's purpose.
1 Proof of Concept (PoC)
Turn an initial idea into a tangible model to validate core functionality and refine design intent. PoC prototypes are typically 3D-printed in ABS or resin to test basic geometry, fit, and user interaction before investing in detailed engineering.
2 Appearance Models
Create high-fidelity visual prototypes for stakeholder presentations, investor meetings, and early user feedback. CNC-machined from medical-grade plastics and finished with painting, texturing, or pad printing, these models look and feel like the final product.
3 Functional Prototyping (Alpha / Beta)
Build prototypes with full or partial functionality to test form, fit, and mechanical performance. Alpha prototypes identify critical design issues early; beta units undergo usability testing and design-for-manufacturing (DFM) review. KUSLA produces these via CNC machining or urethane casting in production-intent materials.
4 Engineering Validation Testing (EVT)
Manufacture prototypes that match final production materials and tolerances to confirm design verification and validate manufacturability. EVT parts often use rapid injection molding with steel tooling to replicate production conditions and generate data for regulatory submissions.
5 Pilot Production
Bridge prototyping and full-scale production with short runs of 50–5,000 units. Pilot runs validate assembly processes, identify supply chain risks, and provide clinical trial samples. KUSLA's low-volume manufacturing service handles this stage with production-grade quality control.
Manufacturing Processes for Medical Prototypes
Each prototyping stage demands different capabilities. KUSLA offers multiple processes under one roof, eliminating multi-vendor coordination and reducing lead times by 30–50%.
| Process | Best For | Materials | Tolerance | Lead Time |
|---|---|---|---|---|
| CNC Machining | Functional prototypes, surgical instruments, enclosures | Metals, PEEK, PC, POM, Ultem | ±0.01 mm | 5–10 days |
| 3D Printing | Concept models, complex geometries, patient-specific guides | ABS, Nylon (PA12), Resin, Ti-6Al-4V | ±0.1–0.2 mm | 3–5 days |
| Injection Molding | EVT/DVT parts, production-intent validation, pilot runs | PP, PC, ABS, LSR silicone, PEEK | ±0.05 mm | 2–4 weeks |
| Urethane Casting | Low-volume housings, overmolded grips, cosmetic covers | PU resins (ABS-like, PP-like, rubber-like) | ±0.15 mm | 7–12 days |
| Sheet Metal | Brackets, chassis, EMI shields, equipment enclosures | Stainless steel (304, 316L), aluminum | ±0.1 mm | 7–15 days |
Biocompatible and Medical-Grade Materials
Material selection for medical devices must balance mechanical performance, sterilization compatibility, and regulatory requirements. KUSLA stocks and machines materials that meet ISO 10993 biocompatibility standards and USP Class VI classification.
| Material | Category | Key Properties | Typical Applications |
|---|---|---|---|
| Medical-grade PP | Plastic | Chemical resistance, autoclavable, low cost | Disposable syringes, lab containers |
| Medical-grade PC | Plastic | Optical clarity, impact resistance, gamma-sterilizable | Diagnostic housings, fluid reservoirs |
| Medical-grade ABS | Plastic | Dimensional stability, EtO-sterilizable | Device enclosures, handles |
| PEEK | High-performance | High strength, radiolucent, autoclavable | Surgical instruments, spinal cage prototypes |
| Ultem (PEI) | High-performance | High heat resistance, inherently flame-retardant | Sterilization trays, reusable surgical tools |
| 316L Stainless Steel | Metal | Corrosion resistance, biocompatible | Surgical instruments, orthopedic fixtures |
| Ti-6Al-4V (Grade 5) | Metal | High strength-to-weight, MRI-compatible | Surgical tools, external fixation components |
| Medical silicone (LSR) | Elastomer | Flexible, biocompatible, autoclavable | Seals, gaskets, wearable interfaces |
Not sure which material fits your device? Send us your design files and our engineering team will recommend options based on your functional requirements, sterilization method, and regulatory pathway.
Medical Injection Molding
For medical devices moving from prototype to production, injection molding delivers the consistency, surface finish, and material properties that downstream testing and regulatory submissions demand.
KUSLA's medical injection molding service includes steel tooling (P20, H13, S136), cleanroom molding environments, and ISO 13485-certified quality management — supporting FDA Class I and Class II device components as well as non-implantable parts.
Capabilities include insert molding for metal-plastic assemblies, overmolding for soft-touch grips and sealed interfaces, and liquid silicone rubber (LSR) molding for flexible medical components. Tooling is designed in-house with a typical lead time of 2–4 weeks; T1 samples are provided for approval before production begins.
Quality Assurance and Regulatory Compliance
Medical device prototyping demands documentation and traceability that general manufacturing cannot provide. KUSLA's quality system is built around ISO 13485 and 21 CFR Part 820 requirements.
Certifications and Standards
ISO 9001:2015 and ISO 13485 certified. Cleanroom environments available for injection molding. Material certificates (mill certs, CoC, CoA) provided with every shipment.
Inspection and Documentation
CMM dimensional inspection, first-article inspection (FAI) reports, incoming material verification, and full lot traceability. Reports are delivered in standard formats compatible with most quality management systems.
IP and Confidentiality Protection
Mutual NDAs are signed before any design files are received. Project data is stored on access-controlled servers, and engineering teams are assigned on a need-to-know basis. KUSLA does not share customer designs, specifications, or project details with any third party.
Medical Device Applications
KUSLA has prototyped components across a broad range of medical device categories:
- Diagnostic equipment — enclosures, panels, light guides, fluid handling channels
- Surgical instruments — handles, retractors, cutting guides, alignment jigs

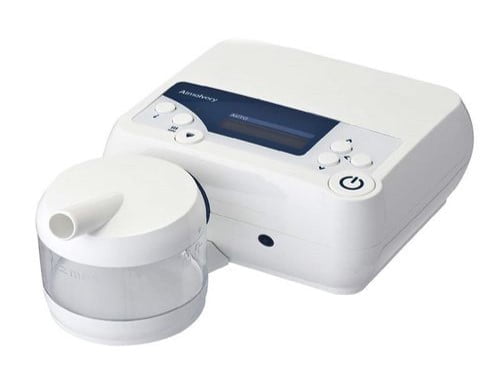

- Drug delivery devices — pen injector housings, inhaler components, pump casings
- Wearable health monitors — sensor housings, skin-contact interfaces, charging cradles
- Lab and clinical equipment — sample trays, centrifuge components, sterilization racks
- Patient mobility aids — brackets, joint assemblies, ergonomic grips
Why Choose KUSLA for Medical Device Prototyping
- Single-source manufacturing: CNC, 3D printing, injection molding, urethane casting, and sheet metal under one roof
- ISO 13485 certified: purpose-built quality system for medical device work
- Fast iteration: first prototypes in as few as 3 days; revisions turned around within the same week
- Material expertise: engineering team experienced with biocompatible and high-performance materials
- Scale-ready: seamless transition from 1 prototype to 10,000-unit production runs
- Full documentation: FAI reports, material certs, CMM data, and lot traceability included standard
Frequently Asked Questions
Medical device prototyping is the process of creating early-stage physical models that demonstrate a device's appearance, function, and user interaction. Prototypes range from simple appearance mockups to fully functional units and are used to validate design concepts, test ergonomics, verify biocompatibility, and meet regulatory requirements before committing to production tooling.
Lead times depend on the manufacturing process and part complexity. 3D-printed prototypes can ship in 3–5 business days, CNC-machined parts in 5–10 days, and injection-molded components using rapid tooling in 2–4 weeks. KUSLA provides a detailed timeline with every quote.
KUSLA works with a wide range of medical-grade and biocompatible materials, including medical-grade PP, PC, ABS, PEEK, Ultem (PEI), titanium (Ti-6Al-4V), 316L stainless steel, and medical-grade silicone. Material selection considers ISO 10993 biocompatibility, sterilization compatibility, and mechanical performance requirements.
Yes. KUSLA is ISO 13485-certified and routinely produces components for FDA Class I and Class II devices, including surgical instruments, diagnostic enclosures, drug delivery housings, and wearable device components. KUSLA does not manufacture Class III implantable devices.
KUSLA holds ISO 9001:2015 and ISO 13485 certifications. Medical injection molding is performed in cleanroom environments. Full material traceability, incoming inspection, CMM dimensional reporting, and first-article inspection (FAI) documentation are provided with every medical order.
Yes. KUSLA signs mutual NDAs before receiving any design files. All project data is stored on access-controlled servers, and engineering teams are assigned on a need-to-know basis. KUSLA does not share customer designs, specifications, or project details with any third party.
Start Your Medical Device Prototype
Upload your CAD files and specifications. Our engineering team will review your design and provide a detailed quote with material recommendations, lead time, and DFM feedback — typically within 24 hours.
